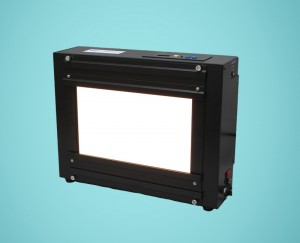

■ VLB-4CRI
・Standard color viewer
・In using LED is high color rendering index
・Corresponding to the chart of both the 16:9 and 3:4
・Can be calibrated with a luminance meter (sold separately)
・The large number of set options
Specifications
| Luminance surface | 300 x 200 [mm] |
| Luminance | 300~1,300cd/m2 |
| Uneven luminance | ±3 [%] |
| Color temperature | 3100 ±150 [K] or 5100 ±500[K] |
| Light source | High-CRI LED Ra=95 |
| Power supply | AC100~240V, 50/60[Hz] |
| Dimensions | 435(W) x 330(H) x 120(D) [mm] |
| Lighting frequency | 100 [kHz] |
| Weight | 5 [kg] |
| Power consumption | 40 [VA] |
| Option | 1-Changing color temperature 2-Adding color temperature ( You can use 2 color) 3-Changing luminance 4-Adding function of auto luminance adjuster 5-changing size of chart holder |
| chart size | 16:9 310 x 200 t=5 [mm] 4:3 320 x 290 t=5 [mm] |
