This small-sized module enables pick up of specific polarization conditions by making the polarized light pass-through.



Features
– High extinction ratio
– Low loss
– High reliability
– Small-sized
– Low price

Key Application
– Linear polarization stabilization for polarization dependent devices
– Correction of extinction ratio degradation

Brochure  PDF

Typical Specifications

Model POL
Insertion Loss <1.0dB
Extinction Ratio >25dB or 30dB
Return Loss > 50dB
Optical Fiber PMF (Φ0.9 fibers)
Optical Connector FC/SPC or SC/SPC or FC/Angled PC or SC/Angled PC

*The polarization maintaining axis is parallel to the slow axis and the connector key.

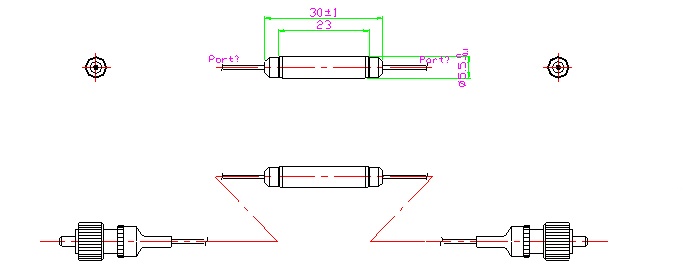

Product Dimensions
