This product measures “polarization extinction ratio” and”“misalignment angle of polarization maintaining axis orientation and its connector key orientation” of PMF patch cords with connectors by inserting the cords into the optical adapter parts. This design enables very reproducible and highly precise monitoring and evaluations.

Polarization of thin LD modules can be evaluated and optical devices can be assembled (polarization axis adjustment) using excitation units (option).

* In addition, special orders for fiber array, external units, other wavelength, etc. are also accepted.



Features
– Evaluation of Polarization Maintaining Fibers with Connectors
– Measurement of polarization extinction ratio
– Measurement of the misalignment angle of the connector key and the PMF polarization maintaining axis

– Evaluation of Optical Device Assembly Polarization (Option)
– Evaluation of polarization for LD modules with polarization maintaining fibers, etc.
– Achievement of highly precise optical device assembly polarization axis adjustment

Brochure  PDF





Typical Specifications

Compatible Wavelength 1550 [nm] or 1310 [nm] or 850 [nm] or 680[nm]
Extinction Ratio Range 0-40 [dB]
Resolution 0.1 [dB]
Polarization Angle Resolution 0.1 [deg]
Measurement Time
  Assembly Mode (For Excitation Option)
  Inspection Mode (For Excitation Option)
< 20 [sec]
< 30 [sec]
< 0.5 [sec]
Optical Adapter FC/SC/MU/LC
(DUT Interface Part) (by replacing adapters)
Connection Interface GP-IB
Dimensions W363.7×H377×T155.5[mm]
Weight 11.5[kg] (for full implementation)
Operating Temperature 10-40 [deg C]
Power Supply Voltage/Frequency 90-12 5[Vac] / 50-60 [Hz]
Power Consumption 50 [Wmax]

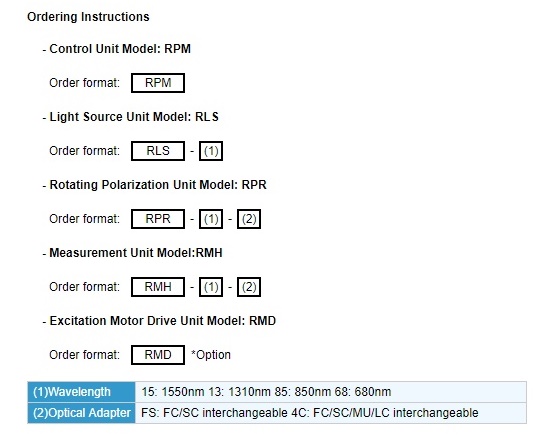

Fuse 2 [A] 250 [V]
