Micro force in μN (mgf) can be detected and measured.
The light and compact body can be easily handled and assembled into a device.
| Custom jigs for sensing part |

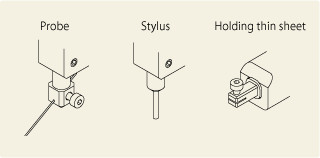

It can be customized the shape of the load sensing part in accodance with a part to be mounted (a probe, etc.).
Applications
•Contact detection of probing device
•Puncture force of a needle point
•Contact detection between fiber optics and functional device
•Pull, compression or bending forces of micro force detection test piece
•Management of micro pressing force load of a contact
•Micro friction force and thrust force monitoring
Line Up
| Model No. | FS1M-0.1N | FS1M-1N | FS1M-5N |
|---|---|---|---|
| Measurement range | 0～100mN (≒10gf) | 0～1N (≒100gf) | 0～5N (≒500gf) |
| Resolution | 20μN (≒2mgf) | 0.1mN (≒10mgf) | 0.5mN (≒50mgf) |
| Repeatability | ±20μN | ±0.1mN | ±0.5mN |
| Linearity | ±1% | ||
| Stiffness | 343μm/N | 50μm/N | 9.9μm/N |
| Resonant frequency at 0g | 156Hz | 185Hz | 400Hz |
| Built-in sensor | Capacitive displacement sensor | ||
| Weight | 100g | 40g | 40g |
| Body material | Aluminum | ||
• Colored sections in the figures above are the pressure force sensing parts (sensing surfaces).
• Signals are output in proportion to the force in the arrow direction.
• Lateral installation is possibe not just in the vertical installation.
